CNC Stone Countertop Machining Center数控石材加工中间+锯片二合一

领跑智能建造新“石”代

CNC Stone Countertop Machining Center数控石材加工中间+锯片二合一

相关国际品牌：华隆 所属的种别：物质库

想领会更多相干产物信息，请接洽咱们！

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数


CNC 花岗岩不锈钢台面生产加工前面 华龙 MATE 智能处理中间的不是款集高效益锯切和切确修边好处于分离式的一体化性装配，很是比较适合家庭厨房台面板的处理搭建。它都具有五轴联动龙门锯、三轴智能数控机床和边侧打磨机的好处，此中分为：

* 意大利的 ESA CNC 体系和佩加索斯软件，
* 三轴 + 五轴插补支配
带有主动换刀功效的 ISO40 车削主轴
* 最高可达到 9000 转/分钟，
* 接纳槽式轴套光滑体例，
最多可有 22 种换刀地位。
* 主动切割进程中用于整机挪动的真空支配体系
* 车载摄像头和投影仪。


它能够或许停止各类范例的切割、斜接、未加工和抛光的表面加工，和铣削、钻孔、反向沉槽、浅浮雕和刻字等支配。
该机器能够按照客户的需要停止定制，是每一个工场车间的抱负处理计划。

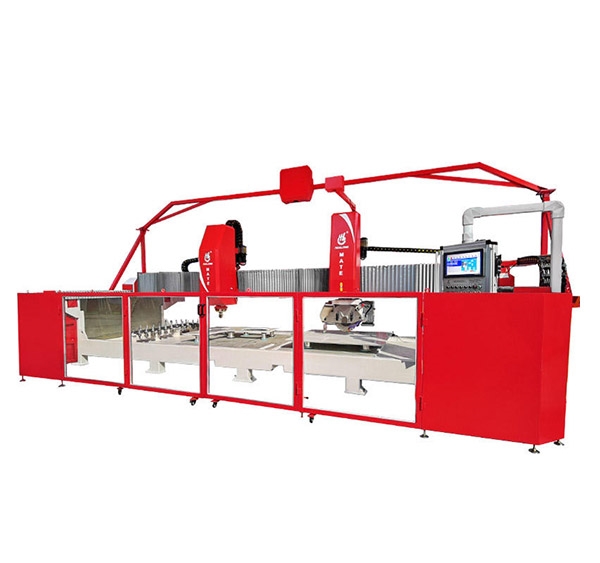

CNC Stone Countertop Machining Center

Hualong MATE cnc working center is an all-in-one machine, combining efficient sawing and accurate edging capabilities, ideal for kitchen countertops fabrication. It includes functionality of a 5 axis bridge saw, a 3 axis cnc router and edge polisher, among them: * Italian ESA cnc system and Pegasus software, * 3 axis + 5 axis interpolation, * spindle with automatic tool change ISO40, *able to reach a maximum of 9000 RPM, *with trough-spindle lubrication, *up to 22 tool change positions, *vacuum manipulator system for parts movement during automatic cut process, *on-board camera and projector.


It can perform each type of cutting, mitering, raw and polished contouring, as well as milling, drilling, counter sinking, bas relief, and writing.
This machine can be custඣomized to the customer's n♛eeds, it is the winning solution for every fabshop.


It can perform each type of cutting, mitering, raw and polished contouring, as well as milling, drilling, counter sinking, bas relief, and writing.
🅺This machine can be customized to the customer's needs, it is the winning solution for every fabshop.

接洽咱们，获得完全计划!
Contact us to obtain the complete solution!

Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆(long)机器，数控五轴桥(qiao)切(qie)(qie)机，四(si)轴桥(qiao)切(qie)(qie)机，4+1桥(qiao)切(qie)(qie)，5+1桥(qiao)切(qie)(qie)，三(san)轴桥(qiao)切(qie)(qie)机，红(hong)外线桥(qiao)切(qie)(qie)机，石(shiꦑ)(shi)材(cai)切(qie)(qie)机，石(shi)(shi)材(cai)加(jia)工场装(zhuang)备(bei)，石(shi)(shi)材(cai)抛光机，石(shi)(shi)材(cai)抛光装(zhuang)备(bei)，石(shi)(shi)材(cai)加(jia)工中间，台面加(jia)工中间，水刀(dao)，水刀(dao)切(qie)(qie)割机，矿(kuang)山(shan)开采装(zhuang)备(bei)，矿(kuang)山(shan)圆盘(pan)锯，圆盘(pan)双(shuang)刀(dao)锯，矿(kuang)山(shan)机，矿(kuang)山(shan)锯。

TECHNICAL DATA
X轴挪动 Stroke (X-axis) mm 3500
Y轴挪动 Stroke (Y-axis) mm 2000
Z轴挪动 Stroke (Z-axis) mm 320
主轴机电的功率 Power of spindle motor kw 7.5
转速 Rotating speed rpm 0-8000
刀具夹持器型号 Tool holder model BT 40
刀具寄存地位 Tool- store position nr 22
任务台尺寸 Workbench dimension mm 3500x2000
锯片直径 Diameter of saw blade mm 酶300-酶350
最大切割长度 Max. cutting length mm 3500
最大切割厚度 Max. cutting thickness mm 50
起落路程 Max. lifting stroke mm 250
最大吸盘分量 Max. lifting weight by sunction cups kg 200
主机电功率 Power of main motor kw 15
来去活动机电的功率 Power of cutter frame reciproctationg motor kw 2
横梁挪动机电的功率 Power of crossbeam shifting motor kw 1.1
起落机电功率 Power of lifting motor kw 0.75
总功率 Gross power kw 29.7
总分量 Gross weight kw 8500
尺寸（长 x 宽 x 高） Dimensions (L x W x H) mm 8500x4400x4000
舒心警告：倘若是想体会较多事项，尺寸规格、管理规范、价格和加工工作规划，请热情接待咱俩。
